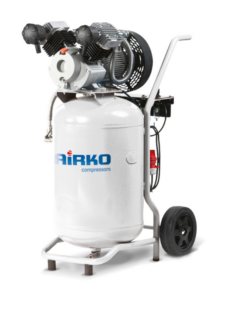

The Trailer 7002 D compressor is designed for upmarket DIY applications. The compressor is directly driven and mobile. This two-cylinder assembly compressor has high-quality branded filter regulators, 2 manometers for tank and working pressure, 3 separate AIRKO professional steel quick-acting couplings for unreduced, reduced unlubricated and reduced lubricated compressed air, thermal motor overload protection and a safety valve. Operated with three-phase current.
- Width
80 cm - Height
130 cm - Depth
62 cm - Weight
88 kg
- Technical data:
- Displacement: 620 l/min
- Filling capacity: 507 l/min
- Delivery volume: 423 l/min (usable intake volume flow related to 7 bar(g))
- Maximum pressure: 10 bar
- Motor: 3.0 KW
- Tank capacity: 90 litres
- Noise level: 67 dB(A) according to DIN 45635 T13, 4 m distance
- Speed: 1,450 min -1
- Three-phase current: 230/400 V ~ 3/50 Hz
- Protection class: IP 54, Iso F
Subject to technical changes.
